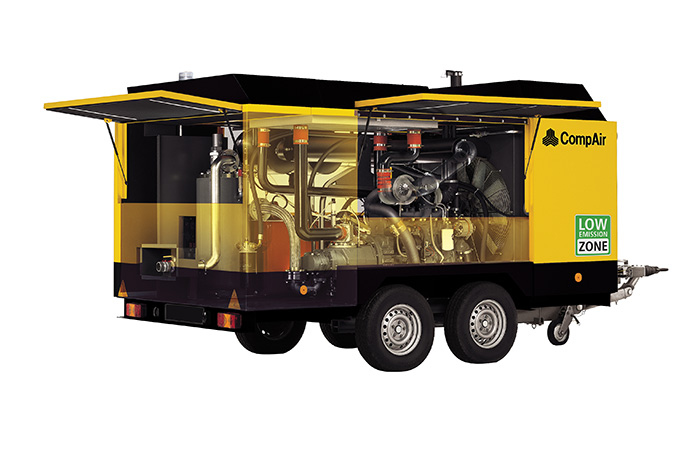

C200TS-24 – C270TS-9 Portable Compressors

Large Portable Compressors

Volume Flow 20 to 27m3/h & Operating Pressure 9 to 24 bar

The TurboScrew compressors with their unique patented bi-turbo technology provide class-leading diesel efficiency, the lowest weight of 3,500 kg and super-clean performance in accordance with directive 97/68/EC Stage V.

SKU: 1018 Category:

Design

The TurboScrew includes the acknowledged SCRT® (Selective Catalytic Reduction Technology) exhaust after treatment system, including oxidation catalytic convertor and diesel particle filter (DPF). This system is capable of removing almost all of the nitrogen oxide emissions from the diesel exhaust gases.

The patented bi-turbo technology achieves a 14% higher energy delivery to the compressor than conventional technologies. With average site conditions where the demand varies between idle, part load and full load, the TurboScrew consumes up to 30% less diesel than most of the conventional compressors on the market, resulting in significant cost savings.

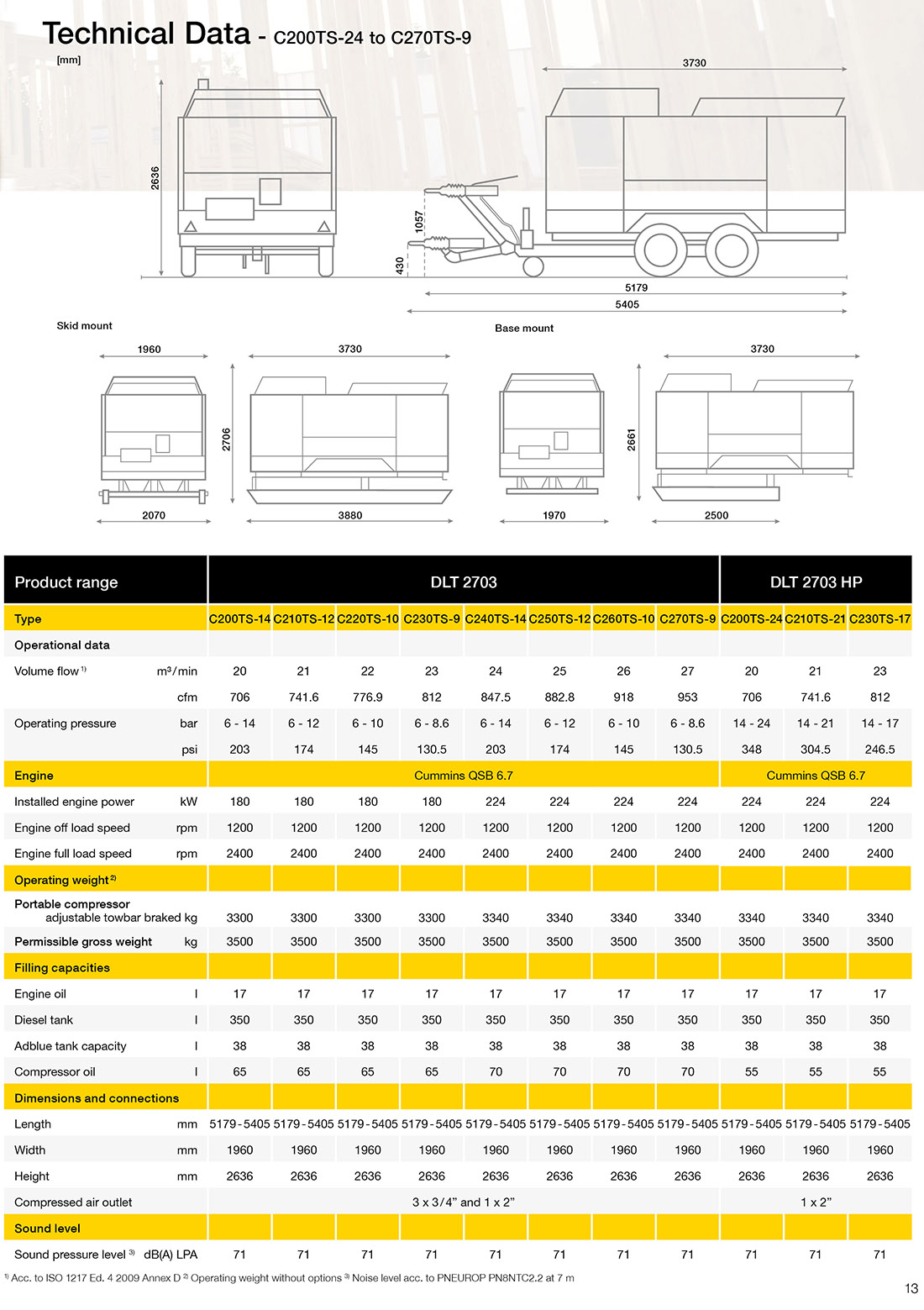

Technical Data
